Designing Your Tubular Heat Exchanger

tube set image

Process Design Considerations

Understanding your product is critical to a successful design.

Please fill out the following planning sheet as thoroughly as possible. If you are unable to answer any of the questions below, leave them open. You may be asked to send us a sample of your product and our lab technicians will confidentially develop a profile for your product. This service is free

Process Considerations

Product Properties (if known)

What is the temperature profile of the product?

What is the flow rate of the product?

  • Flow Rate

  • Batch Size

Time to heat/cool:

What is the profile of the available Media?

Please enter all that apply

Other product/process considerations

Installation Considerations

  • Be sure to calculate space for removal of tubes for maintenance and cleaning. This will require clear space equal to the length of the heat exchanger

  • Custom lengths are also available to fit your space requirements.

  • Height and width of the assembled heat exchanger varies with the amount of tubes.

Length

Options Tube Lengths Nominal Actual Overall Length Height & Width
10' 12' TBD Based on Process Requirements
20' (Standard) 22' TBD Based on Process Requirements
30' 32' TBD Based on Process Requirements

Mechanical Design Considerations

Material Selection

Frame Options

padded feet image
Fig 1. Padded Feet with mounting holes for bolting to structure or anchoring to concrete floors
ball feet image
Fig 2. Adjustable freestanding sanitary Ball Feet
caster feet image
Fig 3. Casters for mobility throughout your plant
caster feet
Fig 4. Wall Mount

Other Mechanical Considerations

Other Options and Considerations

Customizing the Thermaline Floating Series Tubular Heat exchanger is easy.

  • Includes:

    • PMI (Positive Material Identification)
    • MTRs (Material Test Reports)
    • Layout Design
    • Surface Finish Certificate
    • QC Certificate

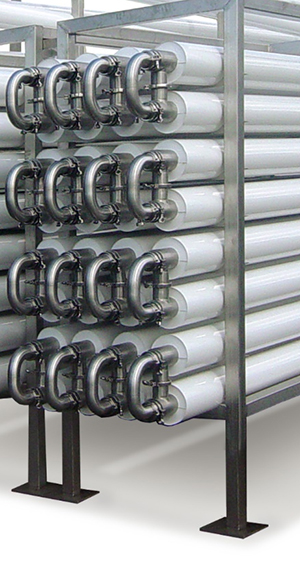

Insulation Option

insulated pipes image

Cross Contamination Tester (CCT):

The CCT is a testing device that is used to test for cracks and pinholes in tubes

  • Includes:

    • Cross Contamination Tester
    • 1.5", 2", 2.5", and 3" diameter s-line connections
    • 1.5", 2", 2.5", and 3" diameter s-line caps
    • Measurement beaker
    • Detailed instruction manual
    • Heavy duty carrying case

  • Includes:

    • Cross Contamination Tester
    • 4.0 PLC driver for automated record retention
    • 1.5", 2", 2.5", and 3" diameter s-line connections
    • 1.5", 2", 2.5", and 3" diameter s-line caps
    • Measurement beaker
    • Detailed instruction manual
    • Heavy duty carrying case
digital cct image

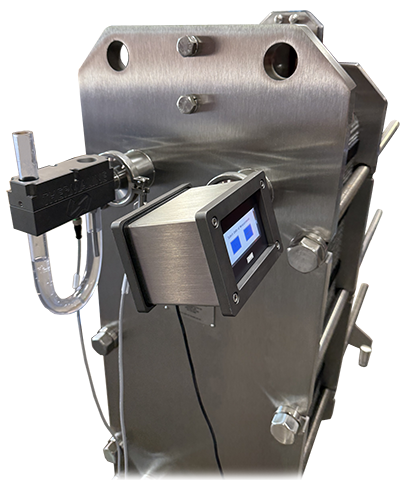

Digital Cross Contamination Tester (CCT 4.0)
